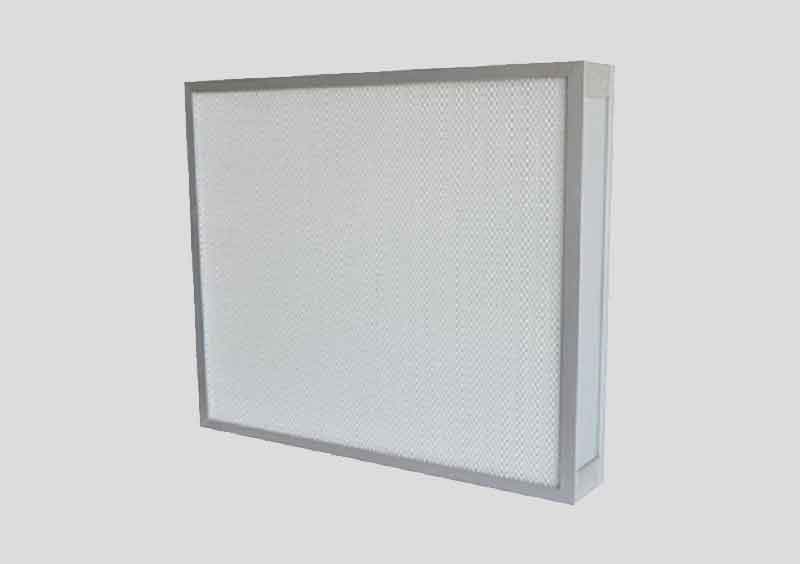

• MINI Pleat HEPA Filter are used in final filter applications where high level dust free environment is needed in places like hospitals, pharmaceuticals, laboratories, electronics and food processing and cleanrooms.
• They remove a broad range of contaminants, like fine dust, smoke pollen. They are 99.97% efficient for 0.3 microns.
| Classification | EU Class (EU10- U17) ; EN 1822 (H10-H14) |
| Efficiency | H14: > 99.999% @0.3 micron to EN 1822 |
| Frame Type | Aluminium Anodized / SS 304 |
| Media | Fire- retardant moisture resistant glass fibre media permanently bonded to the light-weight aluminium extruded frame. |
| Gasket | Neoprene |
| Adhesive | Polyurethane |
| Temperature | 100°C maximum |
| Applications | Used in hospitals, pharma, cleanrooms applications, laminar flow benches, food processing industry semiconductor |
Type |
Type |
Size |
||
Flange and Box Type |
|
Height |
Width |
Depth |
H14 |
610 |
305 |
70 |
|
H14 |
610 |
610 |
70 |
|
H14 |
610 |
915 |
70 |
|
|
H14 |
610 |
1200 |
70 |
